Question PictureBox_LoadPictureFile

OpenDCL 6.0.1.3 Windows 7

I am working with the method PictureBox_LoadPictureFile see below.

;;;(dcl_PictureBox_LoadPictureFile ControlBar-6_Form2_PictureBox1 Filename [as String] {Stretch [as Boolean]})

(dcl_PictureBox_LoadPictureFile ControlBar-6_Form2_PictureBox1 "C:\\fundo.bmp" T)


When the stretch value for T is the smaller image should not fit a larger PictureBox?
This is not happening.

Hello, velasquez,

I have no experience in that topic, that's why I didn't answer yet.
Would you be so kind to create a small sample that explains it?
So it can be helpful for debugging, troubleshooting and maybe bugfixing in the Runtime source code.

Thanks, Fred

Just a remark : to change the Picture of a PBox it's simpler tu load them in the .odcl then to use the Picture property

Hello, krunch,

yes, you are right for the case, that the images do not vary and they are very small in their file size that the odcl project wouldn't get so huge that loading the project file would would cause a recognizable delay.
I use the LoadPicture method, too, for such a very special case, but I do not stretch them.

Regards,
Fred

Hello Fred,
I posted an example.

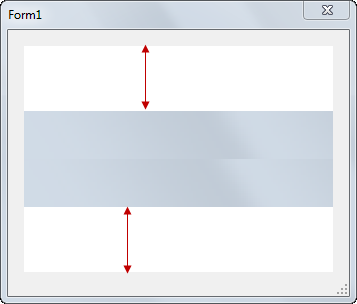

See the image is adjusted in width but is not adjusted in height.
This is the correct function to stretch.

Regards,
Velasquez

author=velasquez link=topic=1588.msg7776#msg7776 date=1297947260 wrote:
Hello Fred,
I posted an example.
See the image is adjusted in width but is not adjusted in height.
This is the correct function to stretch.

Regards,
Velasquez

Sorry.
This is the correct function to stretch?
velasquez

Hi vela, I'm missing the background.bmp.
Fred

Hi, vela, have a look at my sample and resize the form. I cannot find any problem with 6.0.2.1.
Fred

author=Fred Tomke link=topic=1588.msg7778#msg7778 date=1297948991 wrote:
Hi vela, I'm missing the background.bmp.
Fred

Sorry Fred.
I posted the picture now.

Velasquez

Hi velasquez, have you already tried my sample?

Fred

author=Fred Tomke link=topic=1588.msg7784#msg7784 date=1297979748 wrote:
Hi velasquez, have you already tried my sample?

Fred

Yes Fred,
I expected the image to be resized to the entire space of PictureBox.

Thanks
Velasquez

author=velasquez link=topic=1588.msg7788#msg7788 date=1298029107 wrote:
[quote author=Fred Tomke link=topic=1588.msg7784#msg7784 date=1297979748]
Hi velasquez, have you already tried my sample?

Fred

Yes Fred,
I expected the image to be resized to the entire space of PictureBox.

Thanks
Velasquez


Thanks for the replies Fred.
I wanted to work with a background image to any size of PictureBox.
But I think this will not be possible with Stretch in PictureBox_LoadPictureFile.

Best Regards

Hi velasquez, ah you expected the image to be stretched not proportional but OpenDCL only stretches the image proportional.

Fred
