Systemvariable Manager

Started by fred_tomke · 2008-04-10 18:23 UTC · 4 replies · SMF topic #283

fred_tomke 2008-04-10 18:23 UTC

Hello,

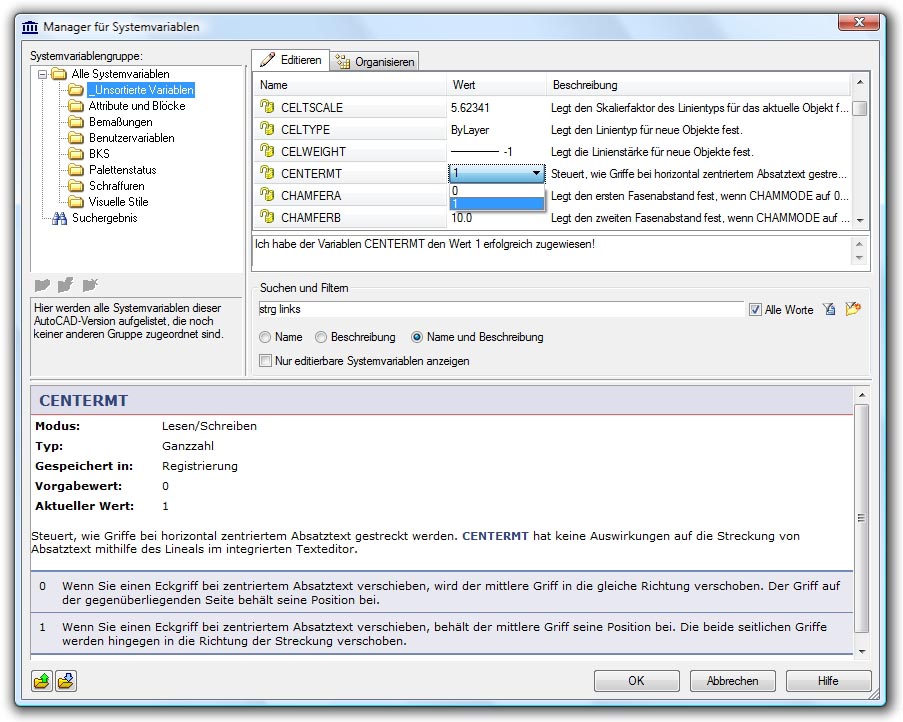

this Systemvariable Manager is an example from an application for townplanning and landscaping StadtCAD, euroGIS IT-Systeme.
Started in ObjectDCL, rewritten in OpenDCL. The information about systemvariables are stored in a database. This manager allows to change values, to organize the variables and to export into an XML file for exchange. The user can search for variables where key word matches with variable name or description. The search result can be added as a user defined filter.

Fred

Attachments


bazzacad 2008-04-10 18:32 UTC

Nice work Fred, looks great.
What type of Database are you reading\writing to?
Is that a HTML control on the bottom for the help system?

fred_tomke 2008-04-10 18:53 UTC

Hi Barry,

I'm using Access DB only. In very very very seldom cases I have access to dBase.

Yes it's an HTML control. The page you see is will be created at runtime whenever you click an item. The single values for name, description, autocad release (which it is introduced first time), read-only mode and long text are values from the database. The current systemvariable value describes the current state of AutoCAD/Drawing.

Fred

donnieworld 2015-11-10 03:25 UTC

Looks fantastic. English version? Are you selling it?

fred_tomke 2015-11-10 09:41 UTC

Hi, not seperately, part of a bigger solution.
Regards, Fred
