Will OPENDCL work with ACAD LT 2024?

Started by Carsten · 2023-05-30 20:47 UTC · 4 replies · SMF topic #2862

Hello,
I just learned that ACAD LT from 2024, supports Autolisp, Vlisp, end to to some extent VLAX.
Does anybody in this forum know if that also includes OpenDCL ?

Best regards
Carsten
Hi,
quite interesting, but no: the {2} is misleading in my opinion: the screenshot shows an appload dialog with selected arx filetype and some lines below you can read:
AutoCAD LT doesn't support ObjectARX, VBA, and DBX applications.

That means, also OpenDCL cannot be loaded.

Torsten {2}, because Autodesk did not allow any programmable automation  in AutoCAD LT, so this policy seems to be revised.
Thanks for reply Tom,
Yes, I also figured that this was probably too good top be true.
BR
Carsten

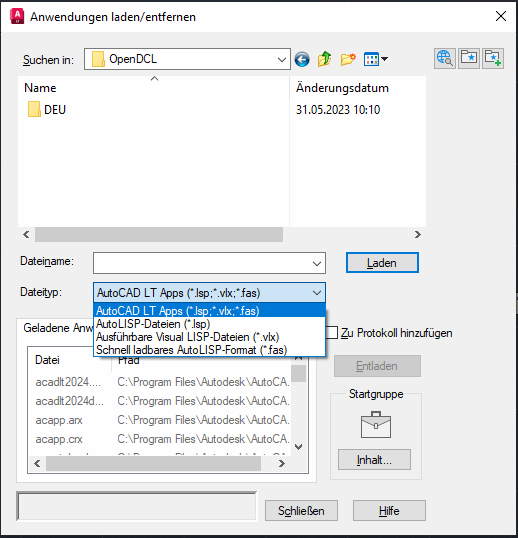

Hi, I have tested: I as guessed, Autodesk just copied the Appload dialog screenshot from AutoCAD to LT Help. In LT you cannot select arx files. You cannot load ARX after LT start using (arxload). You cannot demandload OpenDCL using the registry key. You cannot start VLIDE in LT. I did not have a try with legacy dcl. I believe the goal of lisp in LT was to bring AutoCAD LT and AutoCAD Web closer together since Lisp is already avaliable in Web.
I forgot the screenshot.
Attachments
